CASS 2D/3D SIMULATOR

Fully integrated environment for air traffic controllers training for ACC, APP, PAR, TWR simulation in 2D/3D.

#

CASS 3D

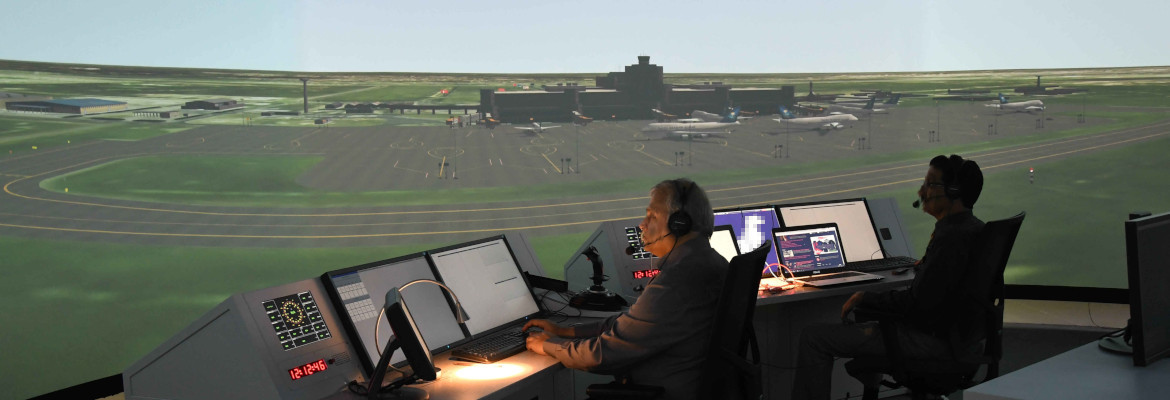

CASS 3D is designed to simulate aircraft and vehicle movement at the airport site including surveillance situation (ACC/APP, TWR control). It uses projectors or large size monitors to create 360° view of the airport situation.

Projectors and LCD displays

#

Large setup

360° cylindric projection system,
circular view
#

Medium setup

Up to 9-channel large LCDs,
circular view
#

Small setup

3-channel large LCDs,
front view

Hardware components

  • Large size monitors or projectors
  • Simulation Servers
  • Controller Working Positions
  • Pseudopilot Working Positions
  • Exercise Preparation Workstation
  • Technical Workstation

Software components

  • Air Traffic Generator (ATG)
  • Surface Traffic Generator (STG)
  • Flight Data Processing System (FDPS)
  • Automatic Terminal Information System (ATIS)
  • Safety Nets and RIMCAS
  • Voice Communication System (VCS)
  • Recording and Replay System (RRS)
  • Time Reference System (TRS)
  • Electronic Strips
  • Operational Display System (ODS)
  • Image Generator (IG)
  • Meteo Display

CASS 2D

#



Is designed to simulate aircraft and vehicle movement at the airport site including surveillance situation in 2D. 3D simulation is not supported in this configuration because of the absence of Image Generator.

Hardware Components

  • Simulation Servers
  • Controller Working Positions
  • Pseudopilot Working Positions
  • Exercise Preparation Workstation
  • Technical Workstation

Software Components

  • Air Traffic Generator (ATG)
  • Surface Traffic Generator (STG)
  • Flight Data Processing System (FDPS)
  • Automatic Terminal Information System (ATIS)
  • Safety Nets and RIMCAS
  • Voice Communication System (VCS)
  • Recording and Replay System (RRS)
  • Time Reference System (TRS)
  • Electronic Strips
  • Operational Display System (ODS)
  • Meteo Display

Working positions

CASS simulator includes Controller Working Positions (CWP), Pseudopilot Working Position (PWP) and Exercise Preparation Workstation (EXPW).

Controller Working Positions

ACC/APP/PAR/TWR, Meteo, VCS, Electronic strips.



Pseudopilot Working Position

Shows surveillance situation in 2D for pseudopilots.
Pseudopilots control aircraft by commands filled
in command line.



Exercise Preparation Workstation

Place where user is editing simulation through editors.

Editors

Exercise is prepared in various editors, which gives user a great flexibility when creating or editing ATC scenarios.
INCA – Editor of scenarios executed in simulation

Available as INCA Basic with essential editing features optionally complemented by INCA Profi extensions:

  • presimulation
  • support of flight database
  • import of real flights
  • workload

INCA can be used also with simulators of other manufacturers. Eventually can prepare exercise for several different systems in parallel.



FIR MAPPER – Airspace database design tool

Airspace database design tool for:

  • operational ATC/ATM systems
  • simulators
  • event monitoring
  • safety nets



TWR MAPPER – Aerodrome database design tool

Aerodrome database design tool for:

  • operational ATC/ATM systems
  • simulators
  • event monitoring

Contains:

  • runways
  • taxiways
  • roads
  • aprons
  • heliports
  • buildings
  • etc.



ACE – Aircraft database design tool

Aircraft database design tool to edit performance envelope of the object. Database may include aircraft, vehicles, animals.

Basic package:

  • 30 aircraft models
  • 5 vehicles

Large package:

  • 100 aircraft models
  • 10 vehicles



Strip designer – Electronic and paper strip editor

Electronic and paper strip editor designed for easy configuration of strips displayed on Flight Data Display (FDD).

Components

CASS simulator is offered with systems that can also be delivered as a separate products

VCS

Voice Communication System

Based on voice over IP technology. Allows effective interconnection of multiple communication systems including UHF and VHF radios, telephones and intercoms.

ATIS

Automatic Terminal Information System

A fully digital system, capable to cooperate with both digital voice over IP or analog radios inputs as well as with a number of other ATM systems through digital interfaces.

RRS

Recording and Replay System

Records data and replays them on a selected device. In recording and replay all data are fully synchronized and the system is digital only.

TRS

Time Reference System

Serves as a source of high precision time for clocks display, time stamping, process control or Time Certificate Authority.

ODS

Operational Display System

Designed to present surveillance, flight and other data in a comprehensive way to the air traffic controller.

CASS Benefits

  • Reduce requirements for training center staff. Less pseudopilots are needed to run exercises and instructors are relieved of workload by elimination of nonproductive routines.
  • Facilitate collaborative decision making throughout the team.
  • Simulate wide range of failures and exceptions, using real-traffic samples or assembled exercises.
  • High training efficiency obtained by individualized continuous feedback with automated alarms for risks and errors.
